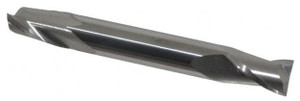

Atrax 2-Flute Centercutting Double End Mill, 5/16" Mill Dia., 5/16" Shank Dia., 1/2" LOC - 45-277-1
Brand: Atrax- SKU:
- 45-277-1
- ID:
- 109921
| Mill Diameter | 5/16" |
| Shank Diameter | 5/16" |
| Length of Cut | 1/2" |
| Overall Length | 2-1/2" |
$32.94
Atrax 2-Flute Centercutting Double End Mill
5/16" Mill Dia., 5/16" Shank Dia., 1/2" LOC
Solid Micrograin Carbide
Features and Benefits:
- All end mills are centercutting allowing for 3 axis capability of plunging, ramping and profile milling
- Two flute end mills are excellent for deep slotting application and also for use on aluminum and nonferrous materials
- Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
- Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
- Center Cutting tools have one or more cutting edges at the tip and are used in a variety of applications including plunging, drilling or ramping.
| Tolerances: | Size | Tolerance |
| Shank Dia. | All Sizes | +.000/-.0005" |
| Cutting Dia. | 1/64 - 1/4" | +.000/-.002" |
| 9/32 - 3/4" | +.000/-.003" |
Specifications:
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number of Flutes | 2 |
| Length of Cut (Inch) | 1/2 |
| Length of Cut (Decimal Inch) | 0.5000 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 5/16 |
| Single or Double End | Double |
| Overall Length (Inch) | 2-1/2 |
| Center Cutting | Center Cutting |
| Flute Type | Spiral |
| Helix Angle | 30.00 |
| Material Grade | Micrograin |
| Chipbreaker | No |
