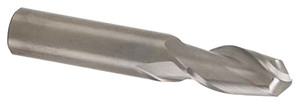

Atrax 2-Flute Centercutting Ball Single End Mills


30° Helix, Stub, Regular, Long & Extra Long Lengths

Length of cut may vary on Mill Diameters 1/32" - 7/64"


Features and Benefits:

  • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
  • Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
Tolerances: Size Tolerance
Shank Dia. All Sizes +.000/-.0005"
Cutting Dia. 1/32 - 1/4" +.000/-.002"
9/32 - 1" +.000/-.003"



Enter any Item Number into the search box to see additional specifications.

Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.

Item Number Description Price Quantity
45-508-9 2-Flute Centercutting Ball Single End Mill 1/32" 1/8" 5/64" 1-1/2" $ 20.86
45-509-7 2-Flute Centercutting Ball Single End Mill 1/32" 1/8" 3/32" 1-1/2" $ 28.33
45-510-5 2-Flute Centercutting Ball Single End Mill 3/64" 1/8" 1/8" 1-1/2" $ 28.33
45-511-3 2-Flute Centercutting Ball Single End Mill 1/16" 1/8" 1/8" 1-1/2" $ 19.89
45-512-1 2-Flute Centercutting Ball Single End Mill 1/16" 1/8" 3/16" 1-1/2" $ 21.86
45-513-9 2-Flute Centercutting Ball Single End Mill 3/32" 1/8" 3/16" 1-1/2" $ 19.89
45-514-7 2-Flute Centercutting Ball Single End Mill 3/32" 1/8" 3/8" 1-1/2" $ 20.93
45-515-4 2-Flute Centercutting Ball Single End Mill 1/8" 1/8" 1/4" 1-1/2" $ 19.89
45-516-2 2-Flute Centercutting Ball Single End Mill 1/8" 1/8" 1/2" 1-1/2" $ 18.80
45-517-0 2-Flute Centercutting Ball Single End Mill 5/32" 3/16" 5/16" 2" $ 31.80
45-518-8 2-Flute Centercutting Ball Single End Mill 5/32" 3/16" 9/16" 2" $ 28.88
45-519-6 2-Flute Centercutting Ball Single End Mill 3/16" 3/16" 5/16" 2" $ 28.11
45-520-4 2-Flute Centercutting Ball Single End Mill 3/16" 3/16" 5/8" 2" $ 24.94
45-521-2 2-Flute Centercutting Ball Single End Mill 7/32" 1/4" 5/8" 2-1/2" $ 36.04
45-522-0 2-Flute Centercutting Ball Single End Mill 1/4" 1/4" 1/2" 2" $ 35.97
45-523-8 2-Flute Centercutting Ball Single End Mill 1/4" 1/4" 3/4" 2-1/2" $ 30.94
45-524-6 2-Flute Centercutting Ball Single End Mill 9/32" 5/16" 3/4" 2-1/2" $ 41.02
45-525-3 2-Flute Centercutting Ball Single End Mill 5/16" 5/16" 13/16" 2-1/2" $ 40.65
45-526-1 2-Flute Centercutting Ball Single End Mill 3/8" 3/8" 7/8" 2-1/2" $ 49.74
45-527-9 2-Flute Centercutting Ball Single End Mill 7/16" 7/16" 1" 2-3/4" $ 75.83
45-528-7 2-Flute Centercutting Ball Single End Mill 1/2" 1/2" 5/8" 2-1/2" $ 92.10
45-529-5 2-Flute Centercutting Ball Single End Mill 1/2" 1/2" 1" 3" $ 88.12
45-530-3 2-Flute Centercutting Ball Single End Mill 3/4" 3/4" 1-1/2" 4" $ 218.11
