Aloris Super Precision Quick Change Tool Posts
- Only a second to change tools.
- Rugged - no chatter or vibration.
- No time wasted with shims.
- Unlimited versatility.
- No tool post indexing necessary.
- No need to disturb basic set-up.
- Speed lathe operation up to 90%.
- Made in the U.S.A.
Base Nut May Require Some Machining To Fit Your Lathe.

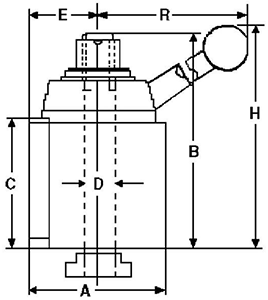

| Item No. | A | B | C | D | E | H | R |
| 55-300-700 | 2-1/2" | 3-7/8" | 2-1/4" | 9/16" | 1-3/8" | 4-11/16" | 5-3/4" |
| 55-300-702 | 3" | 4-5/8" | 2-3/4" | 5/8" | 1-5/8" | 5-9/16" | 7-5/16" |
| 55-300-704 | 3-1/2" | 5-1/8" | 3" | 3/4" | 1-7/8" | 6-1/8" | 7-7/8" |
| 55-300-706 | 4" | 6-1/4" | 3-5/8" | 7/8" | 2-1/8" | 7" | 9" |
| 55-300-708 | 5" | 7-5/8" | 4-5/8" | 1" | 2-11/16" | 8-3/4" | 10-7/8" |
| 55-300-710 | 6" | 8-1/2" | 5" | 1-1/4" | 3-1/8" | 10" | 13-3/4" |
