Allpax Heavy Duty Metric Gasket Cutter Kit, 0 to 1245mm Diameter (OD) - AX6140

Allpax Heavy Duty Metric Gasket Cutter Kit, 0 to 1245mm Diameter (OD) - AX6140

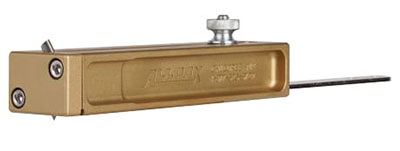

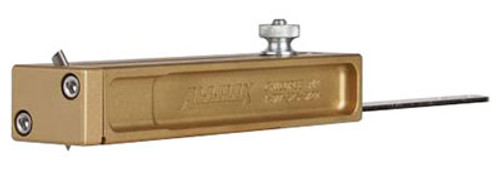

Extension-style kits feature premium, brass cutter block with contoured edges to minimize gasket material buckling and assure precision cuts. Ergonomic design offers secure, comfortable grip. Easy-to-read, engraved, precision scale. Sliding, knurled nut adjusts cutting radius. Chrome-plated, steel extension bars provide for cuts up to 1550mm (61”) in diameter. Hex screws hold cutting blade for cuts up to 19.05mm (¾”) in depth. 457mm x 457mm (18” x 18”) cutting board features plastic non-slip, textured surface that reduces blade friction, minimizes breakage, and self-heals after each use. Includes rugged storage case, dove-tail designer template, bolt hole locator template, and center pin handle.

• Premium, brass cutter block
• Standard-Duty and Heavy-Duty cutting blades
• Chrome plated, steel extension bars
• Rugged storage case
• 457mm x 457mm cutting board
• Made In the USA

AX6140 Includes: 6) Standard Blades(6) Heavy-Duty Blades(1) Short Center Pin(1) Medium Center Pin(1) Long Center Pin(1) Disc Pin(1) Post with Offset Pin(1) Pivot Post(1) Extension Bar Pivot Post(3) Knurled Nut for Pivot Post(2) Knurled Nut for Extensions Bar(1) Extension Bar 13"-25"(2) Extension Bar Over 25"(1) Cutting Knob(1) 18" Cutting Board - (2) Center Pin Ferrules Installed(1) Cutter Block Assembly(1) Storage Case(1) Center Pin Handle(1) Dove Tail Designer Template(1) Bolt Hole Locator Template(1) Instructions
