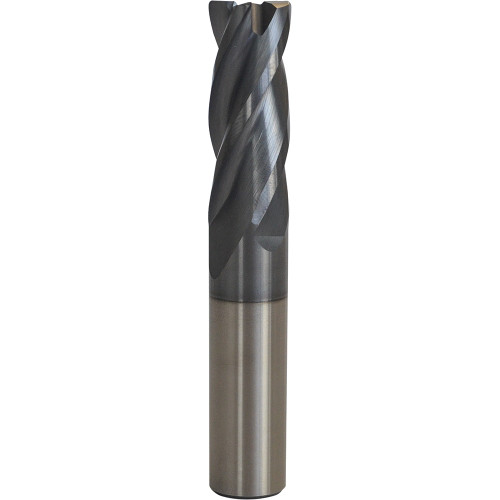

Accupro 1", 1" LOC, 1" Shank Diam, 4" OAL, 4 Flute Carbide Square End Mill Single End, AlCrTiN Finish, Helical Flute, Variable Helix, Centercutting, Right Hand Cut, Right Hand Flute 6504456 - 96901202
Brand: Accupro- SKU:
- 96901202
- ID:
- 623043
$363.34
Accupro 1", 1" LOC, 1" Shank Diam, 4" OAL, 4 Flute Carbide Square End Mill Single End, AlCrTiN Finish, Helical Flute, Variable Helix, Centercutting, Right Hand Cut, Right Hand Flute
Manufacturer Part #: 6504456
S/N: 96901202
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (mm) | 25.40 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (Inch) | 1 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1 |
| Length of Cut (Inch) | 1 |
| Length of Cut (mm) | 25.4 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1 |
| Overall Length (Decimal Inch) | 4 |
| Overall Length (Inch) | 4 |
| Overall Length (mm) | 101.6 |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Helix Angle | 30 |
| Coating/Finish | AlCrTiN |
| Variable Helix | Yes |
| Variable Index | Yes |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight-Cylindrical |
| Material Grade | Micrograin |
| Length Type | Short |
| Length Of Cut Range (Decimal Inch) | 1.0000 - 1.2500 |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | +0.040/-0.000 in |
| TIR Maximum (Decimal Inch) | 0.0005 |
| TIR Maximum (mm) | 0.08 |
| Series | VS |
| UNSPSC Code | 27112803 |
