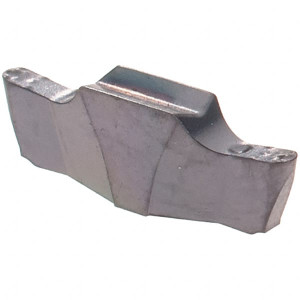

Iscar GEPI1.000.50 IC908 Carbide Grooving Insert TiAlN Finish, Neutral, 1mm Cutting Width, 1.6mm Max Depth, Series Cut Grip 6403583 - 91138032
Brand: Iscar- SKU:
- 91138032
- ID:
- 649291
$48.13
Iscar GEPI1.000.50 IC908 Carbide Grooving Insert TiAlN Finish, Neutral, 1mm Cutting Width, 1.6mm Max Depth, Series Cut Grip
Manufacturer Part #: 6403583
S/N: 91138032
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | GEPI |
| Insert Size Code | 100050 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Cutting Width (mm) | 1.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0630 |
| Maximum Depth of Cut (mm) | 1.60 |
| Insert Material | Carbide |
| Manufacturer Grade | IC908 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Rake | Positive |
| Insert Holding Method | Clamp |
| Insert Size | 100050 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Multi-use Tool | No |
| Series | Cut Grip |
| Coating Process | PVD |
| Rake Angle | 8 |
| Overall Length (Decimal Inch) | 0.3937 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, P, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| UNSPSC Code | 23242105 |
| Coating/Finish | TiAlN |
