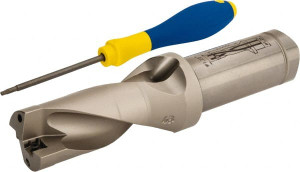

Iscar 2-1/2" Max Drill Depth, 2xD, 1-1/4" Diam, Indexable Insert Drill Drill Style DR, Takes 2 Inserts, 1-1/4" Shank Diam, Straight Shank 3201801 - 85105070
Brand: Iscar- SKU:
- 85105070
- ID:
- 644594
$1,036.05
Iscar 2-1/2" Max Drill Depth, 2xD, 1-1/4" Diam, Indexable Insert Drill Drill Style DR, Takes 2 Inserts, 1-1/4" Shank Diam, Straight Shank
Manufacturer Part #: 3201801
S/N: 85105070
UNSPSC: 23291503
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Compatible Drill Style | DR |
| Maximum Drill Diameter (Inch) | 1-1/4 |
| Drill Diameter (Decimal Inch) | 1.2500 |
| Maximum Drill Diameter (Decimal Inch) | 1.2800 |
| Drill Diameter (Inch) | 1-1/4 |
| Maximum Drill Depth (Inch) | 2-1/2 |
| Maximum Drill Depth (Decimal Inch) | 2.5000 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Compatible Insert Style | SOMT |
| Compatible Insert Size Code | 09 |
| Drill Depth by Diameter Ratio | 2xD |
| Overall Length (Decimal Inch) | 6.8000 |
| Series | DR-TWIST |
| Body Length (Decimal Inch) | 3.8000 |
| Shank Length (Decimal Inch) | 3.0000 |
| Neck Diameter (Inch) | 1.6540 |
| Modular Connection Size | 1-1/4 in |
| Coolant Hole Thread Size | 1/16-27 |
| Tool Application | Holemaking |
| Tool Performance | General Purpose |
| Insert Compatibility | SOMT-DT, SOMT-GF, SOMT-HD |
| Body Side Coolant Hole Thread Size (Inch) | 1/16-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/2-14 |
| Coolant Through | Yes |
