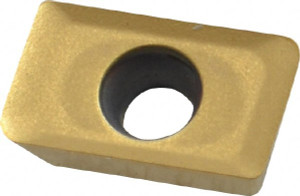

Kennametal APKT160416R KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.6693

Kennametal APKT160416R KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.6693" Long x 3/16" Thick x 0.3748" Wide 1157878 - 78998267

Brand:   Kennametal
SKU:
78998267
ID:
661292
callling
$35.63
Current Stock:
Adding to cart… The item has been added

Kennametal

Kennametal APKT160416R KC725M Carbide Milling Insert TiN/TiCN/TiN Finish, 0.6693" Long x 3/16" Thick x 0.3748" Wide

Manufacturer Part #: 1157878

S/N: 78998267

UNSPSC: 23291601

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleAPKT
Insert Size26
Insert MaterialSolid Carbide
Insert ShapeParallelogram
Manufacturer GradeKC725M
Corner Radius (Decimal Inch)0.0630
Corner Radius (mm)1.60
Thickness (Decimal Inch - 4 Decimals)0.1875
Coating/FinishTiN, TiCN, TiN
Relief Angle11
Insert Size Code2634
Material GradeC5, C6, C7
Width (Inch)3/8
Thickness (Inch)3/16
Thickness Range (Decimal Inch)0.1850 to 0.2000
Corner Radius (Inch)1/16
Length Range (Decimal Inch)0.6500 to 0.7000
Insert HandRight Hand
SeriesAPKT
Coating ProcessPVD
Hole Diameter (Mm) ( - 0 Decimals)0.17
Hole Diameter (Decimal Inch)0.1732
Primary Workpiece MaterialSteel, Stainless Steel, Superalloys & Titanium
Primary Workpiece Material CodeP, M, S
Iso CodeAPKT160416R
Manufacturers Catalog NumberAPKT160416R
Material ApplicationSteel, Stainless Steel, Superalloys & Titanium
Insert Holding MethodScrew
Coating ClassificationPVD
Included Angle Degree85
Width (Decimal Inch - 4 Decimals)0.3748
Length (Decimal Inch - 4 Decimals)0.6693
