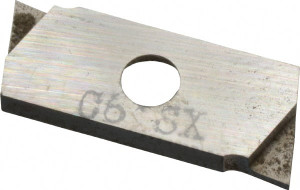

Nikcole GIE 7 SG 0.7 L C6 Carbide Grooving Insert LH, 0.7mm Cutting Width, 2.54mm Max Depth, Series Nikcole GIE7SG0.7L C6 - 78677739
Brand: Nikcole Mini-Systems- SKU:
- 78677739
- ID:
- 650920
$27.88
Nikcole GIE 7 SG 0.7 L C6 Carbide Grooving Insert LH, 0.7mm Cutting Width, 2.54mm Max Depth, Series Nikcole
Manufacturer Part #: GIE7SG0.7L C6
S/N: 78677739
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | GIE |
| Insert Size Code | 7SG07 |
| Cutting Width (Decimal Inch) | 0.0270 |
| Cutting Width (mm) | 0.70 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1000 |
| Maximum Depth of Cut (mm) | 2.54 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | C6 |
| Full Radius | No |
| Insert Holding Method | Screw |
| Material Grade | C6 |
| Cutting Height (mm) | 7.00 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1000 to 0.1500 |
| Cutting Height (Decimal Inch) | 0.2756 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Multi-use Tool | No |
| Series | Nikcole Mini-Systems |
| Overall Length (Decimal Inch) | 0.6693 |
| Overall Length (mm) | 17.00 |
| Iso Code | ISO 9001 |
| Standards | ISO 9001 |
| Chip Breaker | SG |
| Overall Width (mm) | 2.00 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0787 |
