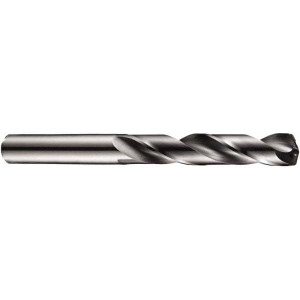

Dormer Pramet 9/16" 140° Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 133mm OAL, Four Facet Split Point 0623978 - 76544717
Brand: Dormer Pramet- SKU:
- 76544717
- ID:
- 719280
$545.35
Dormer Pramet 9/16" 140° Solid Carbide Jobber Drill TiAlN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 133mm OAL, Four Facet Split Point
Manufacturer Part #: 0623978
S/N: 76544717
UNSPSC: 23241634
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (Inch) | 9/16 |
| Drill Bit Size (Decimal Inch) | 0.5625 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Four Facet, Split |
| Coolant Through | Yes |
| Drill Bit Finish/Coating | TiAlN |
| Overall Length (mm) | 133.00 |
| Spiral Type | Regular |
| Flute Length (mm) | 82.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 16.00 |
| Shank Length (mm) | 48.00 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
