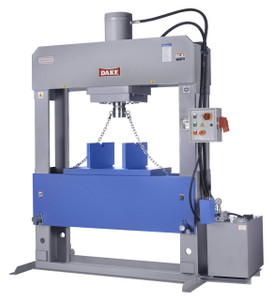

Dake Three Phase Dura-Press, FORCE 150 Ton - 72016
Brand: Dake- SKU:
- 72016
- ID:
- 108300
$42,995.00
Dake Three Phase Dura-Press, FORCE 150 Ton
972016-2
Features:
- Double acting cylinder design with 5-part oil seals for smooth operation and a tight seal.
- Welded heavy steel plate frame for greater rigidity.
- 3 HP submerged motor drives 3 centrifugal pumps for quiet, steady oil flow (100 ton model).
- All electrical controls are low voltage (24V).
- Preset and factory-sealed relief valve to prevent exceeding pressure capacity.
- Ram has lifting eyes that attach a chain to hydraulically move the table.
- 2 HP submerged motor drives two centrifugal pumps for quiet, steady oil flow (40 & 70 ton models)
- Smooth, responsive control valve.
- Rapid advance of the ram to the workpiece - speed shifts automatically when contact is made.
Standard Equipment:
- Frame
- 2 Steel Table Plates
- Lifting Chain
- Cylinder
- Pressure Gauge
Specifications:
| Model | FORCE 150 |
| Item Number | 972016-2 |
| Capacity | 150 tons |
| Operation | Electric |
| Horsepower | 4 |
| Voltage | 220V/440V, 3-Phase |
| Width between uprights | 59” |
| Width between table channels | 14” |
| Minimum ram to table | 14” |
| Maximum ram to table | 35” |
| Ram travel | 19” |
| Screw Travel | n/a |
| Horizontal workhead travel | n/a |
| Footprint | 98” x 47" |
| Height | 106” |
| Weight | 5,711 lbs |
| Base | 98” x 47" |
| Ram advance speed | 49 ipm |
| Pressing speed | 7 ipm |
| RPM | n/a |
| Air Pressure | n/a |
Click to view the User's Manual
Click to view the Parts List
