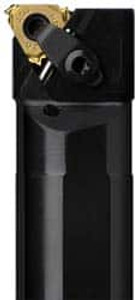

Seco Tools 14" OAL Right Hand Internal Indexable Threading Toolholder 1.929" x 1.843" Shank, Uses 22NR Inserts, CN Toolholder, Through Coolant, Series Snap Tap 02562801 - 65985012
Brand: Seco Tools- SKU:
- 65985012
- ID:
- 683629
$1,001.38
Seco Tools 14" OAL Right Hand Internal Indexable Threading Toolholder 1.929" x 1.843" Shank, Uses 22NR Inserts, CN Toolholder, Through Coolant, Series Snap Tap
Manufacturer Part #: 02562801
S/N: 65985012
UNSPSC: 23291800
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.9290 |
| Toolholder Style | CN |
| Insert Compatibility | 22NR |
| Coolant Entry Style Code | 1 - Axial Concentric Entry |
| Insert Holding Method | Clamp |
| Shank Height (Decimal Inch) | 1.8430 |
| Shank Length (mm) | 291.00 |
| Shank Length (Decimal Inch) | 11.4570 |
| Overall Length (Inch) | 14 |
| Minimum Bore Diameter (Decimal Inch) | 2.3000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Threading, Turning |
| Head Length (Decimal Inch) | 2.3230 |
| Head Length (mm) | 59.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 2.3000 |
| Center to Cutting Edge (Decimal Inch) | 1.2100 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| F -In-- | 1.2100 |
| Series | Snap Tap |
