Iscar 45° Lead Angle, 1-1/2

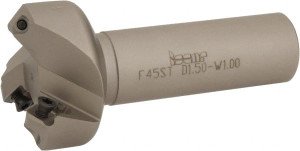

Iscar 45° Lead Angle, 1-1/2" to 2.01" Cut Diam, 1" Shank Diam, Indexable & Chamfer End Mill Takes 3 Inserts, SE 1204, SE 12T3 Insert Style, F45ST Toolholder, 4" OAL, 0.26" Max Depth of Cut 3100389 - 60842689

Brand:   Iscar
SKU:
60842689
ID:
679846
callling
$661.83
Current Stock:
Adding to cart… The item has been added

Iscar

Iscar 45° Lead Angle, 1-1/2" to 2.01" Cut Diam, 1" Shank Diam, Indexable & Chamfer End Mill Takes 3 Inserts, SE 1204, SE 12T3 Insert Style, F45ST Toolholder, 4" OAL, 0.26" Max Depth of Cut

Manufacturer Part #: 3100389

S/N: 60842689

UNSPSC: 23291600

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Minimum Cutting Diameter (Inch)1-1/2
Minimum Cutting Diameter (Decimal Inch)1.5000
Maximum Cutting Diameter (Decimal Inch)2.0100
Maximum Depth of Cut (Decimal Inch)0.2600
Shank Diameter (Inch)1
Shank Diameter (Decimal Inch)1.0000
Number Of Cutter Inserts3
Insert StyleSE.. 1204, SE.. 12T3..
Insert Holding MethodScrew
Overall Length (Decimal Inch)4.0000
Overall Length (Inch)4
SeriesIscarMill
Toolholder StyleF45ST
Functional Length (Decimal Inch)1.2900
Maximum Body Diameter (Decimal Inch)1.0000
Tool ApplicationMilling
StandardsISO 13399
Head Length (Decimal Inch)1.2900
Manufacturers Catalog NumberF45ST D1.50-W1.00
Shank TypeWeldon Flat

Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

Iscar 45° Lead Angle, 1-1/2" to 2.01" Cut Diam, 1" Shank Diam, Indexable & Chamfer End Mill Takes 3 Inserts, SE 1204, SE 12T3 Insert Style, F45ST Toolholder, 4" OAL, 0.26" Max Depth of Cut 3100389 - 60842689
