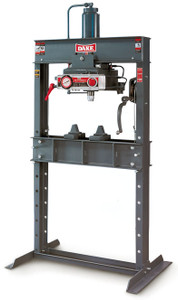

Dake Hydraulic Press, Air Operated, 75 Ton, Double Air Pump - 6-475
Brand: Dake- SKU:
- 6-475
- ID:
- 317272
$17,995.00
Dake Hydraulic Press, Air Operated, 75 Ton, Double Air Pump - 6-475
- Air operation eliminates the need for hand pumping
- Safety valve protects against overloads
- Movable workhead is roller mounted on ball bearings for off-center work
- Dual air pumps, for faster pressing speeds, available on some models
- Rapid ram approach quickly moves ram to work to save production time
- Stroke indicator ensures accurate ram control
- By-pass hole eliminates excessive ram extension
- Adjustable table permits easy vertical movement by means of self-locking hoist
Standard Equipment:
- Frame
- Two forged steel V-blocks
- Flat ram nose
- Stroke indicator
- Safety relief valve
- Workhead
- Two forged steel table plates
- V-ram nose (N/A on 25 ton model)
- Pressure gauge
- Self-locking table hoist
Specifications:
| model | 6-475 |
| number | 906475 |
| capacity (tons) | 75 |
| ram speed-advance | 40 |
| ram speed-press | 3-1/2 |
| number of pumps | 2 |
| air pressure (lbs) | 90-125 |
| A width between uprights | 44 |
| B width between table channels | 8-1/4 |
| C minimum ram to table | 6 |
| D maximum ram to table | 36 |
| E ram travel | 10 |
| F horizontal workhead travel | 24-5/8 |
| JxK base (inches) | 55 x 36 |
| L height (inches) | 86 |
| weight (lbs) | 1,550 |
