Seco Tools Minimaster 5/8

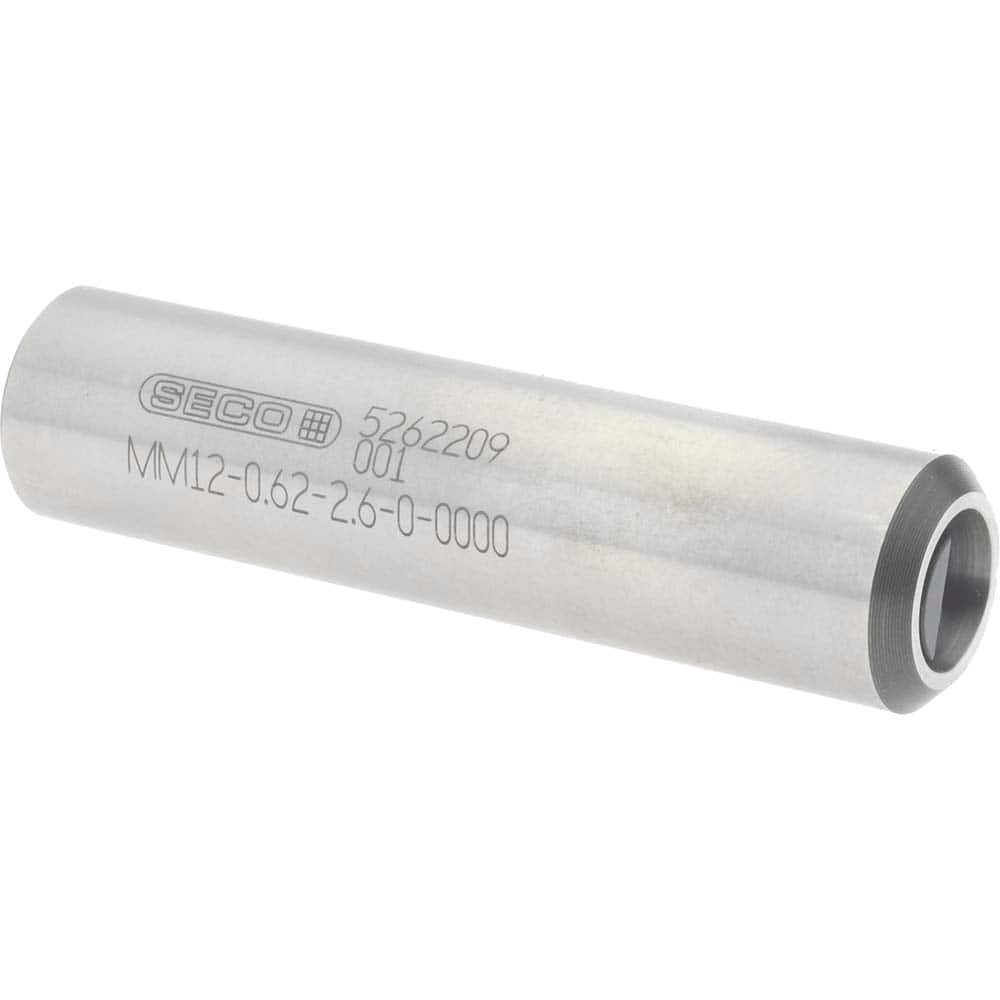

Seco Tools Minimaster 5/8" Keyway Shank Milling Tip Insert Holder & Shank 0.58" Neck Diam, 2.56" OAL, MM12 Tool Holder 75005070 - 57063786

Brand:   Seco Tools
SKU:
57063786
ID:
681197
callling
$228.58
Current Stock:
Adding to cart… The item has been added

Seco Tools

Seco Tools Minimaster 5/8" Keyway Shank Milling Tip Insert Holder & Shank 0.58" Neck Diam, 2.56" OAL, MM12 Tool Holder

Manufacturer Part #: 75005070

S/N: 57063786

UNSPSC: 23291600

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Projection (mm)17.00
Overall Length (Decimal Inch)2.5600
Neck Diameter (Decimal Inch)0.5080
Shank TypeKeyway
Shank Diameter (Decimal Inch)0.6250
Shank Diameter (Inch)5/8
Shank Diameter (mm)15.88
Toolholder StyleMM12
SeriesMinimaster
Head Length (mm)17.00
Head Length (Decimal Inch)0.6690
Maximum Diameter (Decimal Inch)0.6250
Maximum Diameter (mm)15.88
Tool ApplicationMilling
Weldon FlatYes
Effective Length (Decimal Inch)0.6020
Milling Tip StyleMM12
Shank ShapeStraight
