TMX Precision Live Center 3-565-006P, 6MT - 565-006
Brand: TMX- SKU:
- 565-006
- ID:
- 82689
| Morse Taper | 6 MT |
| Weight | 26.43 lbs. |
| Max Speed | 2000 RPM |
| Max Workpiece Wt. | 7700 lbs. |
| T.I.R. | 0.0004" |
$649.95

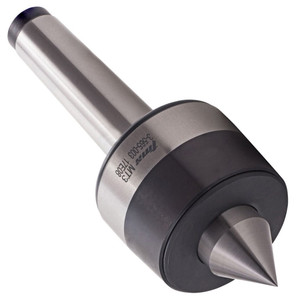

TMX Precision Live Center 3-565-006P, 6MT
- Manufactured from one piece of forging, hardened and precisely ground
- Three precision, high quality bearings are protected by a special steel shield and neoprene seal
- Live centers are lubricated with special grease and do not require any additional lubrication
Live Center MT #6
Precision T.I.R. .0004
TMX by Toolmex (Previously part number was 7-565-006)
MADE IN POLAND
Specifications:
| Item | Live Center | |
| Type | Precision | |
| Morse Taper | 6 | |
| Weight | lb | 26.43 |
| Maximum Speed | RPM | 2000 |
| Max Weight of Workpiece | lb | 7700 |
| T.I.R. | in | 0.0004 |
| L | in | 13.13 |
| D | in | 5.12 |
| A | in | 2.48 |
| B | in | 5.96 |
| C | in | 2.52 |
See all TMX Precision Live Centers
