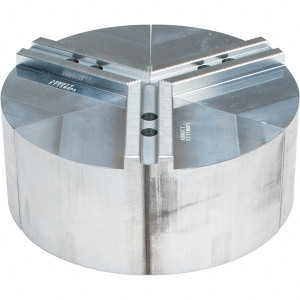

Abbott Workholding 8" Max Chuck Capacity, 1.5mm x 60° Serrated Interface, Round Soft Lathe Chuck Jaw 3 Jaw, Aluminum, 0.9843" Btw Mount Hole Ctrs, 10" Wide, 4" High, 12mm Fastener KTT10-8P1 - 50487248
Brand: Abbott Workholding- SKU:
- 50487248
- ID:
- 450064
$375.00
Abbott Workholding 8" Max Chuck Capacity, 1.5mm x 60° Serrated Interface, Round Soft Lathe Chuck Jaw 3 Jaw, Aluminum, 0.9843" Btw Mount Hole Ctrs, 10" Wide, 4" High, 12mm Fastener
Manufacturer Part #: KTT10-8P1
S/N: 50487248
UNSPSC: 31162902
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Jaw Shape | Round |
| Jaw Interface Type | Serrated |
| Material | Aluminum |
| Maximum Compatible Chuck Diameter (mm) | 8.00 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 8.0000 |
| Minimum Compatible Chuck Diameter (Decimal Inch) | 8.0000 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.9843 |
| Fastener Size (mm) | 12.00 |
| Fastener Size (Decimal Inch) | 0.4724 |
| Slot Width | 14.00 |
| Slot Width (Decimal Inch) | 0.5510 |
| Groove Width (Decimal Inch) | 0.5512 |
| Overall Height (Decimal Inch) | 4.0000 |
| Material Grade | 6061 |
| Overall Width/Diameter (Decimal Inch) | 10.0000 |
| Overall Width/Diameter (Inch) | 10 |
| Number Of Jaws | 3 |
