Dorian Tools Extra Heavy Duty Modular Bull Nose Head Adapter, PLCBN-HA-0177-0386 - 48420
Brand: Dorian Tool- SKU:
- 48420
- ID:
- 119010
$599.95
Dorian Tools Extra Heavy Duty Modular Bull Nose Head Adapter, PLCBN-HA-0177-0386 - 48420
- High-Precision Double Needle Bearings Support the Extended Spindle Body. This Reduces Deflection, Increases Rigidity and Neutralizes Vibration.
- Extended Center Shaft for Extra Rigidity & Weight-Support.
- Heavy Duty Thrust-Bearing for Heavy Axial Loads.
- Precision Heavy Duty Taper Roller Bearing will Sustain Heavy Radial and Axial Loads without Compromising Precision
- Brass Seal Protects from Swarf & Coolant.
- Precision Ground Taper Nose .0001" TIR Between Nose and Morse Taper Shank.
- Extraction Screw Simplifies Changing the Bull Nose Heads.

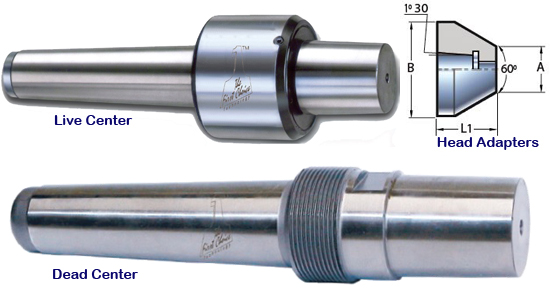

Click to see a Graphical representation of the Modular Bull Nose System
Modular Bull Nose Head Adapters Specifications:
| UPC No. 733101- | 48420 |
| Description | PLCBN-HA-0177-0386 |
| A | 1.77 |
| B | 3.86 |
| L1 | 2.17 |
| Nose Taper | 60° |
See all parts in the Dorian Tools Extra Heavy Duty Modular Bull Nose System
