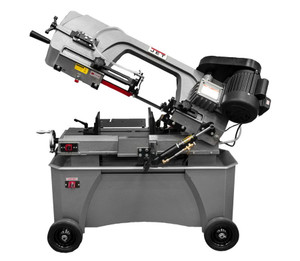

JET 7" x 12" Industrial Bandsaw HVBS-712D - 414560
Brand: Jet- SKU:
- 414560
- ID:
- 314921
$2,059.00
JET 7" x 12" Industrial Bandsaw HVBS-712D - 414560
The JET HVBS-712 Horizontal/Vertical Metalworking Bandsaw has everything any operator needs to tackle even the toughest job. JET increased the width and height of the stand and added new features that exceed expectations. The HVBS-712 is another innovative JET product packed with features you’ve come to expect.
Durability
- Blade drive is a belt to sealed, hardened and ground gear drive system
- Heavy cast iron bow and bed
- Improved wider stand with built-in storage cabinet and chip tray
- Blade wheels are made flanged cast iron
- UL listed motor
Safety
- CSA/CUS Certified
- UL listed switches
- Blade tensioning guides
- Auto shut-off after cut
- Cast mounted hydraulic downfeed for ease of cut
Ease of Use
- Leveling feet & two 8 rubber wheels for ease of movement
- Toolless quick change vise, miters to 45 degrees
- Toolless quick lock vise with preset mitering positions at 15°, 30° & 45° (414560)
- Multi-position blade guide enhances use in vertical position by increasing the throat capacity from 4" to 8" and creates a safer working position (414560)
- Side eccentric shaft with ball bearings and rear-ball bearing blade guides
- Adjustable hydraulic downfeed system
- Large 10" x 12" infeed table assembly extends the support area and can be use in either horizontal or vertical positions (414560)
Standard Equipment
- Micro adjustable toolless material stop (414560)
- Bi-metal 5/8T blade
- Coolant pump with 1 Gallon Tank, 1/8 HP, Single Phase Motor complete with hose, flexible nozzle, shut-off valve, tank and baffle
- Chip brush
Deluxe Model Features: (See pictures)
- Large 10" x 12" Infeed Table - Assembly extends the support area and can be easily changed to be used in either horizontal or vertical position.
- Multi-Position Blade Guide - Enhance use in Vertical position and increases the throat capacity from 4" to 8"
- Tool-less Quick Lock Vise - Preset mitering positions at 15, 30 & 45 degrees
- Micro Adjustable Tool-less Material Stop - Allows for quicker set-up and accurate repeatability.
Specifications:
| Model | HVBS-712D (Deluxe) |
| Item Number | 414560 |
| Cutting Capacity (W x D) | 7" x 12" |
| Round Capacity at 90 Degree | 7" |
| Round Capacity at 45 Degree | 5" |
| Rectangle Capacity at 90 Degree (H x W) | 1" x 12" 2" x 11-1/4" 4" x 11" 7" x 10-1/4" |
| Rectangle Capacity at 45 Degree (H x W) | 6" x 4" |
| Square Capacity at 90 Degree | 7" x 7" |
| Square Capacity at 45 Degree | 5" x 5" |
| Throat Depth | 7" |
| Vertical Tables | 10" x 12" |
| Vise Swivels | 45 deg |
| Blade Size | 3/4" x .032" x 93" |
| Blade Wheel Diameter | 11-3/4" |
| Blade Speed (SFPM) | 86, 132, 178, 260 |
| Bed Height without Wheels | 22-1/4" |
| Motor/Electrics | 3/4 HP, 115/230V, 1-Phase |
| Prewired | 115V |
| Overall Dimensions (L x W x H) | 48" x 17" x 44" |
| Net Weight | 374 lbs. |
