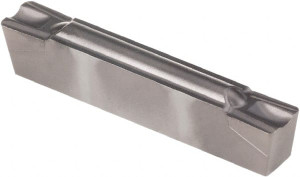

Kennametal A4G0300M03P04GMP KCU10 Carbide Grooving Insert AlTiN Finish, Neutral, 3mm Cutting Width, 3.51mm Max Depth, Series A4 4034722 - 40829152
Brand: Kennametal- SKU:
- 40829152
- ID:
- 650768
$48.75
Kennametal A4G0300M03P04GMP KCU10 Carbide Grooving Insert AlTiN Finish, Neutral, 3mm Cutting Width, 3.51mm Max Depth, Series A4
Manufacturer Part #: 4034722
S/N: 40829152
UNSPSC: 23242105
(Minimum Order Quantity=10, Package Quantity=1)
(Please order in multiples of 10)
Specifications:
| Insert Style | G |
| Cutting Width (Decimal Inch) | 0.1181 |
| Cutting Width (mm) | 3.00 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1378 |
| Maximum Depth of Cut (mm) | 3.51 |
| Insert Material | Carbide |
| Manufacturer Grade | KCU10 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.41 |
| Rake | Positive |
| Insert Size | 0300 |
| Material Grade | C3, C4 |
| Cutting Height (mm) | 4.01 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1000 to 0.1500 |
| Cutting Height (Decimal Inch) | 0.1580 |
| Maximum Depth Of Cut Range (mm) | 3.00 to 4.00 |
| Multi-use Tool | Yes |
| Series | A4 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.7874 |
| Manufacturers Catalog Number | A4G0300M03P04GMP |
| UNSPSC Code | 23242105 |
| Chip Breaker | GMP |
| Included Angle Degree | 90 |
| Coating/Finish | AlTiN |
