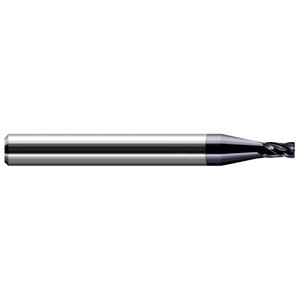

Harvey Tool Corner Radius & Corner Chamfer End Mills, Mill Diameter (Inch): 7/64, Mill Diameter (Decimal Inch): 0.1090, End Type: Corner Radius, Corner Radius (Decimal Inch): 0.0050, Number of Flutes: 4, Material: Solid Carbide 941402-C3 - 39072418

Harvey Tool Corner Radius & Corner Chamfer End Mills, Mill Diameter (Inch): 7/64, Mill Diameter (Decimal Inch): 0.1090, End Type: Corner Radius, Corner Radius (Decimal Inch): 0.0050, Number of Flutes: 4, Material: Solid Carbide 941402-C3 - 39072418

Brand:   Harvey Tool
SKU:
39072418
ID:
615525
callling
$50.07
Current Stock:
Adding to cart… The item has been added

Harvey Tool

Harvey Tool Corner Radius & Corner Chamfer End Mills, Mill Diameter (Inch): 7/64, Mill Diameter (Decimal Inch): 0.1090, End Type: Corner Radius, Corner Radius (Decimal Inch): 0.0050, Number of Flutes: 4, Material: Solid Carbide

Manufacturer Part #: 941402-C3

S/N: 39072418

UNSPSC: 23000000

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Mill Diameter (Decimal Inch)0.1090
Number Of Flutes4
Single Or Double EndSingle
End Mill MaterialSolid Carbide
Coating/FinishAlTiN
Overall Length (Inch)1-1/2
CentercuttingYes
Flute DirectionRight Hand
Corner Radius (Decimal Inch)0.0050
Variable IndexNo
Variable HelixNo
Cutting DirectionRight Hand
Coolant ThroughNo
PitchNormal
Overall Length (Decimal Inch)1.5000
ChipbreakerNo
End TypeCorner Radius
Length Of Cut (Decimal Inch - 4 Decimals)1.5000
Length TypeShort
Flute TypeHelical
Extended ReachNo
Shank TypeStraight-Cylindrical
Material Removal TypeRoughing & Finishing
Shank Diameter (Decimal Inch)0.1250
Shank Diameter (Inch)1/8
Corner Radius Tolerance0.0010 to -0.0010 in
Mill Diameter Tolerance0.0005 to -0.0005 in
Overall Length Tolerance0.0100 to -0.0000 in
Primary Workpiece MaterialSteel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Non-ISO
Primary Workpiece Material CodeP, M, K, N, O
UNSPSC Code27112803
SeriesMiniature End Mills - Corner Radius - Stub & Standard, Miniature End Mills
Material ApplicationNon-Ferrous Metal, Cast Iron, Steel, Stainless Steel, Composite
Coating ClassificationPVD
For Use With.Toolholder
