Boston Gear 16 Pitch, 1-1/4

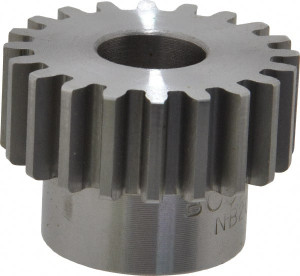

Boston Gear 16 Pitch, 1-1/4" Pitch Diam, 20 Tooth Spur Gear 1/2" Face Width, 1/2" Bore Diam, 0.96" Hub Diam, 14.5° Pressure Angle, Steel NB20B - 36682094

Brand:   Boston Gear
SKU:
36682094
ID:
568591
UPC:
781711097182
callling
$69.12
Current Stock:
Adding to cart… The item has been added

Boston Gear

Boston Gear 16 Pitch, 1-1/4" Pitch Diam, 20 Tooth Spur Gear 1/2" Face Width, 1/2" Bore Diam, 0.96" Hub Diam, 14.5° Pressure Angle, Steel

Manufacturer Part #: NB20B

S/N: 36682094

UNSPSC: 31171700

UPC: 781711097182

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Gear TypeSpur
Pitch Diameter (Decimal Inch)1.2500
Outside Diameter (Decimal Inch - 4 Decimals)1.3800
Outside Diameter (mm)35.10
Face Width (Decimal Inch)0.5000
Face Width (Inch)1/2
Hub Projection (Decimal Inch)0.4400
Hub Diameter (Decimal Inch)0.9600
Pressure Angle14.5degree
MaterialSteel
Diametral Pitch16
Bore Diameter (Inch)1/2
Bore Diameter (Decimal Inch)0.5000
Number Of Teeth20
Product Service Code3020
