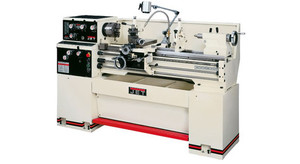

Jet Geared Head Engine Lathe, 13"x40" and 14"x40" - 321532
Brand: Jet- SKU:
- 321532
- ID:
- 101973
$10,500.00
- Uniquely designed exclusively by JET
- Hardened and ground gears are featured in the headstock and gearbox
- D1-4 spindle is precision ground for accuracy and supported by high-quality tapered roller bearings
- Headstock is constantly oiled during operation
- Splined, not keyed, shafts are utilized in the headstock
- Gearbox gives large threading and feed capabilities with no gear changes
- V-way bed design is induction hardened and ground
- Gap bed section provided for larger diameter work
- Independent leadscrew and feed rod
- Spindle actuation control is apron mounted
- Inch-metric dials are standard
- Compound and cross slide have backlash elimination
- Adjustable gibs are incorporated in the carriage and slideways
- Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
- Tolerance test certificate included
- 2 years of Warranty
Specification
| Distance Between Centers (in.) | 40 |
| Spindle Bore (in.) | 1-1/2 |
| Spindle Mount | D1-4 |
| Spindle Taper W/ Sleeve | MT-5 (MT-3) |
| Number of Spindle speeds | 12 |
| Range of Spindle Speeds (RPM) | 40 - 1,800 |
| Number of Longitudinal and Cross Feed Rates | 40 |
| Range of Longitudinal Feeds (IPR) | 0.0012 - 0.0294 |
| Range of Cross Feeds (IPR) | 0.0003 - 0.0103 |
| Number of Inch Threads | 40 |
| Range of Inch Threads (TPI) | 4 - 112 |
| Number of Metric Threads | 22 |
| Range of Metric Threads | 0.45 - 7.5 |
| Max Tool Size (in.) | 5/8 x 5/8 |
| Compound Slide Travel (in.) | 3-1/2 |
| Cross Slide Travel (in.) | 6-3/8 |
| Carriage Travel (in.) | 37-1/2 |
| Tailstock Spindle Travel (in.) | 4-3/4 |
| Taper in Tailstock Spindle | MT-3 |
| Steady Rest Capacity (in.) | 3-3/4 |
| Follow Rest Capacity (in.) | 2-3/4 |
| Width of Bed (in.) | 10-1/2 |
