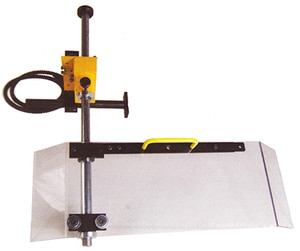

Flexbar 3-Axis Universal Mount Interlocked Guard w/Standard Visorguard Shield - 13491
Brand: Flexbar- SKU:
- 13491
- ID:
- 324668
Visorguard Size | 16"W x 8"H |
$710.00
Flexbar 3-Axis Universal Mount Interlocked Guard w/Standard Visorguard Shield - 13491
FEATURING A NEWLY DESIGNED UNIVERSAL POSITIONING SYSTEM INCORPORATING A RANGE OF ELECTRICAL INTERLOCKED SHIELDS FOR A WIDE VARIETY OF MACHINE GUARDING APPLICATIONS INCLUDING MILLS, DRILL PRESSES AND BAND SAWS.
- 3-Axis universal positioning system allows all shields to be optimally employed in the hazardous machining area. The shield can be positioned
- A-vertical: 12”,
- B-horizontal: 9”
- C- In and Out: 9”
- Horizontal post has a mounting bracket allowing attachment to the machine headstock.
- All shields are permanently attached to the adjustable vertical post which is mounted through a Flexbar Electrical Interlocking Device.
- When the shield is swung out of position, the cam-operated limit switch opens the contacts and stops the machine.
- Includes attached electrical wiring with flexible conduit to allow connection to the safety circuit of the machine that switches off the control to the movement of the spindle.
- Unit is protected beyond IPG rating.
- Made In U.S.A.
