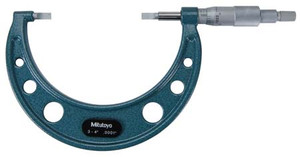

Mitutoyo Mechanical Blade Micrometer, 3-4" - 11-788-7
Brand: Mitutoyo- SKU:
- 11-788-7
- ID:
- 110384
| Range | 3 - 4" |
| Accuracy | ± 0.0002" |
| Type | A |
$379.95
Mitutoyo Mechanical Blade Micrometer, 3-4"
# 122-128
- The anvil and the spindle have a blade for measuring the groove diameter of shafts, keyways, and other hard-to-reach areas
- With Ratchet Stop for constant force
- Speedy spindle feed of 10mm / .4”/rev. (Quickmike type)
- With a standard bar except 0 -25mm and 0 - 1" model
- Supplied in fitted plastic case
Technical Data:
- Accuracy: Refer to the list of specifications below.
- Graduation: 0.01mm or .0001"
- Parallelism: 3ìm / .00012” for models up to 75mm / 3”
(3+R/100)ìm for models over 75mm,
R=max. range (mm) .00016” for 4” models
