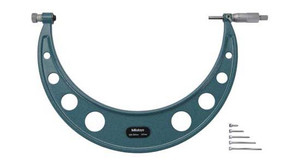

Mitutoyo Outside Micrometer, Series 104 w/ Interchangeable Anvils, 200-300mm - 104-141A
Brand: Mitutoyo- SKU:
- 104-141A
- ID:
- 119221
| Range | 200 - 300 mm |
| Anvils | 0, 25, 50, 75 mm |
$649.00
Mitutoyo Outside Micrometer, Series 104 w/ Interchangeable Anvils - 104-141A
Range: 200-300mm, with 0, 25, 50, 75mm Anvils
- IP65 water/dust protection 340 series models with a range up to 12in/300mm
- Wide measuring range with interchangeable anvils
- With a Ratchet Stop for constant force
- Supplied with zero-setting standards bar for each range
- With SPC output (Series 340)
- Supplied in fitted wooden case
Technical Data
- Accuracy: ±(4+R/75)ìm, R=max. range (mm)
- Graduation: 0.01mm
- Flatness: 0.6µm/.000024" for models up to 300mm/12", 1µm/.00004" for models over 300mm/12"
- Parallelism: 2µm/.00008" for models up to 75mm/3", 3µm/.00012” for models up to 150mm/6”, (2+R/100)µm for models over 150mm, R=max. range (mm)
- Measuring faces: Carbide tipped
See all Mitutoyo Outside Micrometers, Series 104 w/ Interchangeable Anvils
