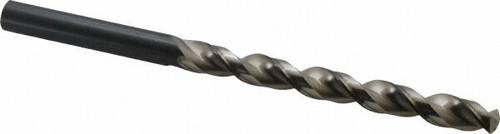

Guhring 13mm 130° Parabolic Flute High Speed Steel Taper Length Drill Bit Bright Finish, 5-9/32" Flute Length, 8-5/64" OAL, Standard Point, Straight Shank, Series 535 9005350130000 - 06826481
Brand: Guhring- SKU:
- 06826481
- ID:
- 745138
$173.53
Guhring 13mm 130° Parabolic Flute High Speed Steel Taper Length Drill Bit Bright Finish, 5-9/32" Flute Length, 8-5/64" OAL, Standard Point, Straight Shank, Series 535
Manufacturer Part #: 9005350130000
S/N: 06826481
UNSPSC: 23241600
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 13.00 |
| Drill Bit Size (Decimal Inch) | 0.5118 |
| Tool Material | High Speed Steel |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Parabolic |
| Cutting Direction | Right Hand |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Cylindrical |
| Threaded Shank | No |
| Flute Length x Diamter Ratio | 10xD |
| Material Application3 | Aluminum Alloy, Cast Iron, Steel |
| Overall Length (mm) | 205.00 |
| Overall Length (Decimal Inch) | 8-5/64 |
| Series | 535 |
| Shank Diameter (Decimal Inch) | 0.5118 |
| Flute Length X Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 4.5080 |
| Maximum Drilling Depth (mm) | 114.50 |
| Shank Length (mm) | 71.00 |
| Flute Length (Inch) | 5-9/32 |
| Flute Length (mm) | 134.00 |
| Drill Bit Diameter Tolerance | +0.000 to -0.027 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Specification Number | DIN 340 |
| Spiral Type | Regular |
