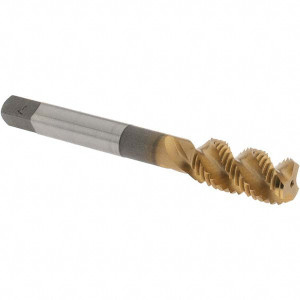

OSG Spiral Flute Tap: 7/16-20 UNF, 3 Flutes, Bottoming, 2B Class of Fit, High Speed Steel, TIN Coated 3-5/32" OAL, Right Hand Thread 2987005 - 04622155

Brand:   OSG USA, INC.
SKU:
04622155
ID:
771912
callling
$70.37
Current Stock:
Adding to cart… The item has been added

OSG USA, INC.

OSG Spiral Flute Tap: 7/16-20 UNF, 3 Flutes, Bottoming, 2B Class of Fit, High Speed Steel, TIN Coated 3-5/32" OAL, Right Hand Thread

Manufacturer Part #: 2987005

S/N: 04622155

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Thread Size (Inch)7/16-20
Thread StandardUNF
ChamferBottoming
MaterialHigh-Speed Steel
Class Of Fit2B
Coating/FinishTiN
Thread DirectionRight Hand
Coolant ThroughNo
Material ApplicationAluminum, Carbon Steel
Number Of Flutes3
Flute DirectionRight Hand
Helix Angle50
OversizeNo
Threads per Inch20
Overall Length (Inch)3-5/32
Thread Length (Decimal Inch)0.858
Overall Length (Decimal Inch)3.156
Shank Diameter (Decimal Inch)0.323
Neck Length (Decimal Inch)1.712
Square Length (Decimal Inch)0.40625
Square Size (Decimal Inch)0.242
Flute StyleSpiral
Series297
