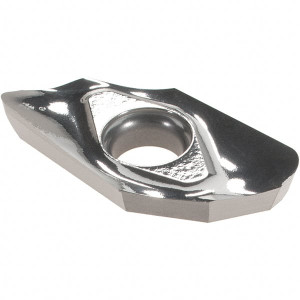

Iscar INS HM90 APCR160520R Carbide Milling Insert Uncoated 5603211 - 02794022

Iscar INS HM90 APCR160520R Carbide Milling Insert Uncoated 5603211 - 02794022

Brand:   Iscar
SKU:
02794022
ID:
659976
callling
$53.67
Current Stock:
Adding to cart… The item has been added

Iscar

Iscar INS HM90 APCR160520R Carbide Milling Insert Uncoated

Manufacturer Part #: 5603211

S/N: 02794022

UNSPSC: 23291601

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleAPCR
Insert Size16
Insert MaterialSolid Carbide
Insert ShapeParallelogram
Manufacturer GradeIC28
Corner Radius (Decimal Inch)0.0787
Number Of Cutting Edges2
Thickness (Decimal Inch - 4 Decimals)0.1890
Coating/FinishBright/Uncoated
Relief Angle11
Maximum Depth of Cut (Decimal Inch)0.6102
Maximum Depth of Cut (mm)15.50
Insert Size Code160520
Length (Inch)1
Inscribed Circle (Decimal Inch)0.5040
Thickness Range (Decimal Inch)0.1850 to 0.2000
Inscribed Circle Range (Decimal Inch)0.5000 to 0.5100
Length Range (Decimal Inch)1.0000+
Insert HandRight Hand
SeriesHELIALU
Coating ProcessUncoated
Cutting Edge Effective Length (Decimal Inch)0.6180
RakePositive
Primary Workpiece MaterialNon-Ferrous Metal
Primary Workpiece Material CodeN
Ansi CodeHM90 APCR 160520R-P IC28
Iso CodeHM90 APCR 160520R-P
StandardsANSI, ISO 13399
Cutting Edge StyleHoned
Manufacturers Catalog NumberHM90 APCR 160520R-P IC28
Cutter Series CompatibilityHM90-16
Chip BreakerP
Material ApplicationNon-Ferrous Metal
Insert Holding MethodScrew
Coating ClassificationUncoated
Single or Double Sided InsertSingle
Included Angle Degree85
Width (Decimal Inch - 4 Decimals)0.5040
Width (mm - 2 Decimals)12.80
Multi-Use ToolYes
Length (Decimal Inch - 4 Decimals)1.0000

Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.
