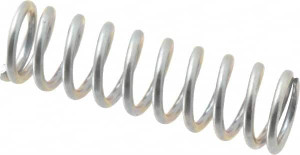

Gardner Spring 0.3" OD 1" Free Length Precision Compression Spring 21 Lb Spring Rating, 0.038" Wire, 12 Lb Max Workload, 0.4" Solid Height, Music Wire 36377G - 00613158

Gardner Spring 0.3" OD 1" Free Length Precision Compression Spring 21 Lb Spring Rating, 0.038" Wire, 12 Lb Max Workload, 0.4" Solid Height, Music Wire 36377G - 00613158

Brand:   Gardner Spring
SKU:
00613158
ID:
583458
UPC:
715153186272
callling
$3.47
Current Stock:
Adding to cart… The item has been added

Gardner Spring

Gardner Spring 0.3" OD 1" Free Length Precision Compression Spring 21 Lb Spring Rating, 0.038" Wire, 12 Lb Max Workload, 0.4" Solid Height, Music Wire

Manufacturer Part #: 36377G

S/N: 00613158

UNSPSC: 31161904

UPC: 715153186272

(Minimum Order Quantity=1, Package Quantity=5)

Specifications:

Outside Diameter (Decimal Inch - 4 Decimals)0.3000in
Free Length (Inch)1in
Spring Rate21.0000in.lb
End TypeClosed, Ground
Maximum Work Load (N)54.49
Maximum Work Load (Lb.)12.0000
MaterialMusic Wire
FinishPlain
Wire Size (Decimal Inch)0.0382
Hole Diameter (Decimal Inch)0.3130
Spring TypePrecision
Solid Height (Decimal Inch)0.4000
Free Length (Decimal Inch)1.0000
ColorSilver
StandardsAISI 302, ASTM A228, ASTM A313
UNSPSC Code31161904
